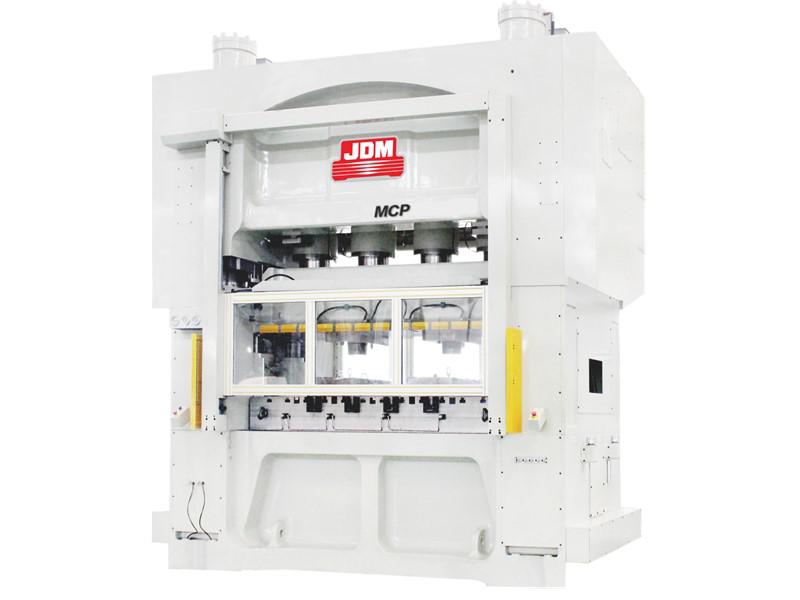

High Speed Press
Product Specification
Our High-Speed Power Press Machine stands out in the market with its unparalleled speed, rigidity, and precision, catering to a range of specifications with a large table to accommodate diverse needs. Specifically designed for the electronic information industry, the JDM Ultra-Precision High-Speed Press is perfect for manufacturing semiconductor lead frames, integrated circuit lead frames, precision hardware, electronic components, and connectors, as well as precision motor cores. This state-of-the-art machine ensures efficiency and quality, meeting the high demands of modern electronic production.
Request a Quote
Set A Consultation Today
*We respect your confidentiality and all information are protected.
send
Description
Review
Applicable area
Our products are suitable for high-speed and precision automatic stamping of automatic riveting iron cores such as new energy automobile motors, compressor motors, and energy-efficient industrial motors.
Product Features
Four - columned top cylinder structure
Double-drive technology
Slider multi-point force
High-rigidity cast pre-stress machine body
Multiple aging treatment

Low inertia clutch brake
Insert bearing
Constant temperature lubricated cooling system
Straight column + octagonal precision guide
High speed
Lightweight, fully dynamic balance design
Stable operation under 300-400SPM load
High rigidity
High strength casting bed, stiffness 1 / 15000-1 / 20000
The turbulence of the multi-point applied force slider is 1/2 of that of the double point
High precision
Static precision: 1/ 2 of jis level tolerance
Lower dead point dynamic accuracy: GB/T 29548 ultra precision level
Complete specification
Covering 200-500 tons full series, a variety of working table, to meet the needs of higher efficiency motor materials thinner, higher accuracy, faster speed of high speed precision stamping requirements.
Large table
3.7m maximum Mesa to meet the needs of the development of new energy vehicles, synchronized with the international, larger tonnage.Applicable materials and processes
Suitable for high speed precision stamping production of 0.2-0.35mm high hardness material, micron-level die clearance and wide table surface self-folding riveting iron core continuous die.
Specification Unit MCP200-175 MCP220-200 MCP300-230
Capacity Kn 2000 2200 3000
Force points    2 3 3
Rated tonnage point mm 3 3 3
Slide stroke mm 30 30 30
Pressing times spm 150~500 150~450 120~420
Die height mm 370~430 420~480 420~520
Minimum die height when
lifting capacity
mm 150 150 150
Slide size mm 1750×700 2000×700 2300×800
Working table area mm 1750×950 2000×950 2300×1000
The thickness of the working bedplate mm 200 200 210
The base of blanking holes area mm 1500×310 1800×310 2000×410
The main motor power kW 2×15 2×15 2×22
The total power kW 37 37 51
Positive opening width mm 1800 2050 2350
Accuracy(JIS B6402)   Premium Premium Premium
Specification Unit MCP300-270 MCP300-330 MCP300-370
Capacity Kn 3000 3000 3000
Force points    3 4 4
Rated tonnage point mm 3 3 3
Slide stroke mm 30 30 30
Pressing times spm 120~400 100~350 100~300
Die height mm 420~520 520~620 520~620
Minimum die height when
lifting capacity
mm 150 150 150
Slide size mm 2700×800 3300×900 3700×1000
Working table area mm 2700×1000 3300×1000 3700×1200
The thickness of the working
bedplate
mm 250 250 250
The base of blanking holes area mm 2400×400 3000×500 3200×500
The main motor power kW 2×22 2×22 2×22
The total power kW 51 51 51
Positive opening width mm 2750 3350 3750
Accuracy(JIS B6402)   Premium Premium Premium
Specification Unit MCP400-280 MCP400-330 MCP400-370 MCP500-330
Capacity Kn 4000 4000 4000 5000
Force points    4 4 4 4
Rated tonnage point mm 3 3 3 3
Slide stroke mm 30 30 30 30
Pressing times spm 100~300 100~300 100~300 80~280
Die height mm 520~620 520~620 520~620 550~650
Minimum die height when
lifting capacity
mm 150 150 150 150
Slide size mm 2800×1000 3300×1000 3700×1000 3300×1200
Working table area mm 2800×1200 3300×1200 3700×1200 3300×1300
The thickness of the working
bedplate
mm 280 280 280 300
The base of blanking holes area mm 2500×510 3000×500 3200×500 2800×580
The main motor power kW 2×30 2×30 2×30 2×37
The total power kW 70 70 70 90
Positive opening width mm 2850 3350 3750 3350
Accuracy(JIS B6402)   Premium Premium Premium Premium
