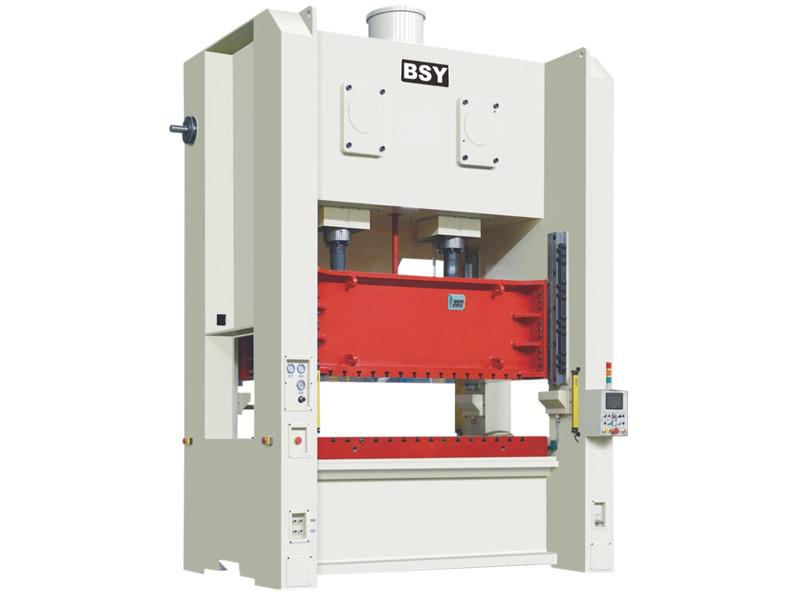

Mechanical Press
Product Specification
Our mechanical press machines serve industries like aviation, automotive, and electronics. Made of robust steel, they ensure precision and stability. The unique two-slide board design guarantees smooth operation, with components optimized for durability. Their design supports automated production, featuring a high-intensity clutch and overloading protector for safety. Using high-grade alloy steel, they're ideal for large molds and eccentric pressing, and their closed circuitry is compatible with automated equipment.
Request a Quote
Set A Consultation Today
*We respect your confidentiality and all information are protected.
send
Description
Review
Specifications
The press machines are widely used for manufacturing in the industries of aviation&areospace,ship&vehicles, electric and electronic appliances, instruments and meters, medical facilities, hardware, etc.
Product Features
1.The machine body is welded of quality steel sheet and treated by tension elimination, improve the stability of precision of the machine.
2.In order to guarantee the machine running in stable and smooth adopts the design of symmetrical two slid boards with balancer.
3.The precision of mold adjusting up to 0. 1 mm safety, reliable and convenient.
4. Crank, Gear, Connect bar are oxidized hardening, and milled, having super comprehensive mechanical performance and durable function.
5.Reasonable structural design is convenient for automatic production and line production.
6. Used reliable high-intensity clutch /brake and twin electromagnetic valve, overloading protector and guarantee safe production all-around.
7.Used high-grade alloy steel, double crank, wide work center with connection bar structure. the optimized design is suitable for large sizes and the mold bearing large impact loading as well as pressing of eccentric mold.
8.Adopted closed electric loop circuit, have compatible with any automatic equipments.
Model Unit BSY160 BSY200 BSY250
Model   S H S H S H
Capacity Ton 160 200 250
Rated tonna-ge point mm 6 3 6 3 7 3
Stroke mm 180 130 250 150 280 170
Stroke
perminute
SPM 30-55 40-85 20-50 31-70 20-40 30-60
Die height mm 450 400 500 450 550 450
Slide
adjustment
mm 100 120 120
Slide area mm 1600*650 1850*750 2400-900
mm
Bolster area mm 1800*760 2200*940 2500*1000
mm
Side opening mm 700*450 900*600 900*600
mm
Main motor KW*P 15*4 18.5*4 22*4
Air pressure Mpa 0.6 0.6 0.6
Presses
precision
  GB/JIS level 1 GB/JIS level 1 GB/JIS level 1
Maximum
die weight
kg 1200 1500 2000
Model Unit BSY300 BSY400
Model   S H S H
Capacity Ton 300 400
Rated tonnage
point
mm 7 3 7 4
Stroke mm 250 170 300 170
Stroke perminute SPM 20-35 30-50 20-30 20-40
Die height mm 550 450 550 450
Slide adjustment mm 120 120
Slide area mm A 2500*1000 A2500*1000
mm B 3000*1000 B 3000*1100
Bolster area mm A 2700*1000 A 2700*1000
mm B 3200*1000 B 3200*1100
Side opening mm A 900*600 A 900*600
mm B 900*600 B 1000*600
Main motor KW*P 30*4 37*4
Air pressure Mpa 0.6 0.6
Presses precision   GB/JIS一级 GB/JIS一级
Maximum die
weight
kg 2000 3500
Model Unit BSY500 BSY600
Model   S H S H
Capacity Ton 500 600
Rated tonnage
point
mm 10 8 12 8
Stroke mm 350 250 350 250
Stroke perminute SPM 15-25 20-35 15-25 20-30
Die height mm 600 550 700 600
Slide adjustment mm 120 150
Slide area mm A2600*1000 A2600*1000
mm B 3400*1400 B 3400*1400
Bolster area mm A 2800*1000 A 2800*1000
mm B 3400*1400 B 3400*1400
Side opening mm A 900*700 A 900*700
mm B 1300*800 B 1300*800
Main motor KW*P 45*4 55*4
Air pressure Mpa 0.6 0.6
Presses precision   GB/JIS一级 GB/JIS一级
Maximum die
weight
kg 4000 6000
Standard Unit

High-performance dry clutch& brake

Standard operating system of jingda

Electronic crank angle led display

Electronic speed led display

/Off/Inching/Afety one stroke/Continuous

Hydraulic overload protector

Main motor(adjustable)+inverter

Overru detector

Portable 2-hand push

Dual solenoid valve

Manual lubrication system

Total counter, 6 digits


Preset counter, 6 digits

Maintenance counter, 6 digits

Life counter, 6 digits

Electronic rotary cam switch set aside 4 groups

Air ejector 3/8* one channel

Air source receptacle 3/8*two-channel

Missed detection circuit

Power receptacle(220v, two-level, three level integrated power supply)

Human-machine interface

Optional

Die cushion

Vs motor

Safety light curtain

Slide knock-out device

Main motor reversing circuit

Safety die block with plug

Feeding error detection device

Flywheel brake

Quick mold replace mechanism

Upper die clamper

Under die clamper

Die lifter

Die arm

Anchor bolts & foundation plates

Automatic feed equipment

Nc straightener feed c/w uncoiler(3in 1)

Nc roller feeder

Straightener c/w uncoiler(2in 1)

Straightened
