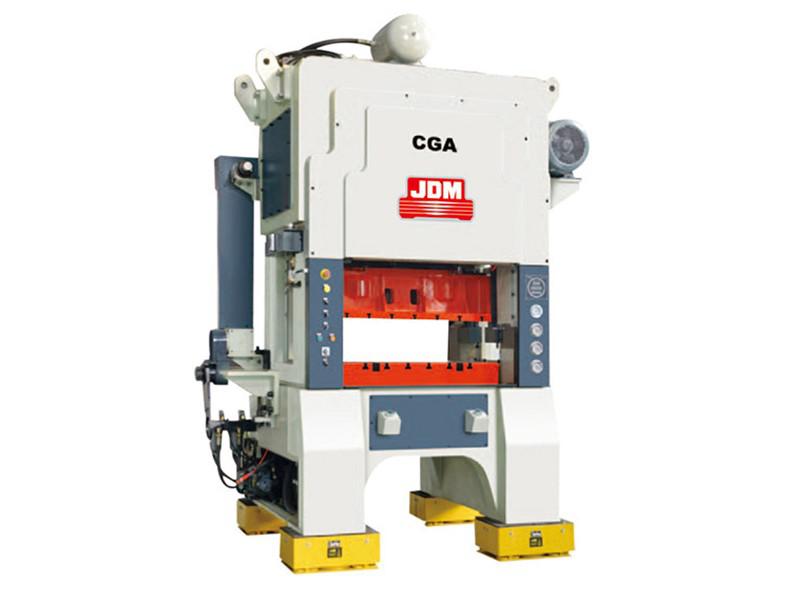

CGA 30 High Speed Stamping Press

CGA Series Time OF Ultra-high Speed Super Precision Punch
CGA 30 High Speed Stamping Press
CGA 30 High Speed Stamping Press

Description

Reviews

Specifications
JDM Ultra-precision high-speed press mainly used in electronic information industry fields such as the manufacture of semiconductor lead frame, integrated circuit lead frame, precision hardware, and electronic components, electronic connectors, precision motor core.
Product Features
1. With high rigidity, level symmetric toggle mechanism, properties. Can be crankshaft than traditional completely different.
2. Thermal deformation of the minimum with heat balance design control the bottom dead center position of minimum
The slider displacement is minimum with speed change
3. Near the bottom dead center of the cranksha Punch than retention time long, produce an excellent embossed effect to ensure product quality.
4. Needle roller type 8 surface guide rail. transverse vibration and inclined is zero clearance obtain excellent partial load resistance protect the mold extend the life of the mold And 8 surface based on sliding block guide rail can be adjusted respectively, simplemaintenance
MODEL Unit CGA30 CGA40 CGA60
Capacity kN 300 400 600
Stroke length mm 20/25/32 20/25/30/32 20/25/32
Stroke per minute spm 200-1200/1050/900 180-1000/900/850/850 100-750/750/650
Die height mm 240 240 300
Slide adjustment mm 40 50 80
Slide area
(L.R. x F.B.)
mm 600×300 750×340 1030×500
Bolster area
(L.R. x F.B.)
mm 250×40 350×60 1100×600×140
The base opening with
(L.R. x F.B.)
mm 400×100 560×120 840×120
Working table opening with
(L.R. x F.B.)
mm 350×60 500×100 780×80
Side opening mm 600×400 750×500 230
Die height kg 80 105 450
Main motor kW 11 15 22
Gross weight kg 6500 8000 14000
JIS accuracy   Premium Premium Premium
MODEL Unit CGA60W CGA80 CGA80W
Capacity kN 600 800 800
Stroke length mm 25/32/40/45/50 20/25/32/36 25/32
Stroke per minute spm 100-700/600/450/400/350 120-700/600/550/500 120-500/450
Die height mm 340/340/335/325/320 320 320
Slide adjustment mm 80/80/75/65/60 80 80
Slide area
(L.R. x F.B.)
mm 1280×500 1080×580 1380×580
Bolster area
(L.R. x F.B.)
mm 1350×600×140 1200×800×160 1500×800×160
The base opening with
(L.R. x F.B.)
mm 1050×120 900×160 1200×160
Working table opening with
(L.R. x F.B.)
mm 1000×80 860×120 1160×120
Side opening mm 230 280 280
Die height kg 450 500 500
Main motor kW 22 30 30
Gross weight kg 16000 19000 22000
JIS accuracy   Premium Premium Premium
Exterior CGA30 CGA40 CGA60 CGA60W CGA80 CGA80W CGA125
A 780 830 945 945 970 970 1050
B 535 470 545 545 585 590 680
C 1170 1205 1420 1545 1530 1660 1850
D 610 645 1420 1545 1470 1620 1670
E 3075 3180 3080 3170 3380 3380 4070
F 675 730 835 835 985 1020 955
G 535 520 705 705 855 820 825
H 530 521 550 550 400 400 515
I 1120 1191 1120 1240 1160 1160 1510
J 520 530 900 1150 960 1260 1320
K 1160 1200 1900 2150 1960 2260 2580
Workbench CGA30 CGA40 CGA60 CGA60W CGA80 CGA80W CGA125
A 600 600 1100 1350 1200 1500 1600
B 400 400 600 600 800 800 900
C 110 110 120 80 120 120 170
D 350 350 780 1000 860 1160 1260
E 60 60 80 80 120 120 120
F 90 90 140 140 150 150 150
G 18 18 22 22 28 28 28
H 30 30 40 40 50 50 50
I 20 20 23 23 30 30 30
J 13 13 16 16 20 20 20
Slider CGA30 CGA40 CGA60 CGA60W CGA80 CGA80W CGA125
A 600 750 1030 1280 1080 1380 1480
B 300 340 500 500 580 580 600
C 200 200 180 180 180 180 170
D 90 100 150 150 150 150 150
