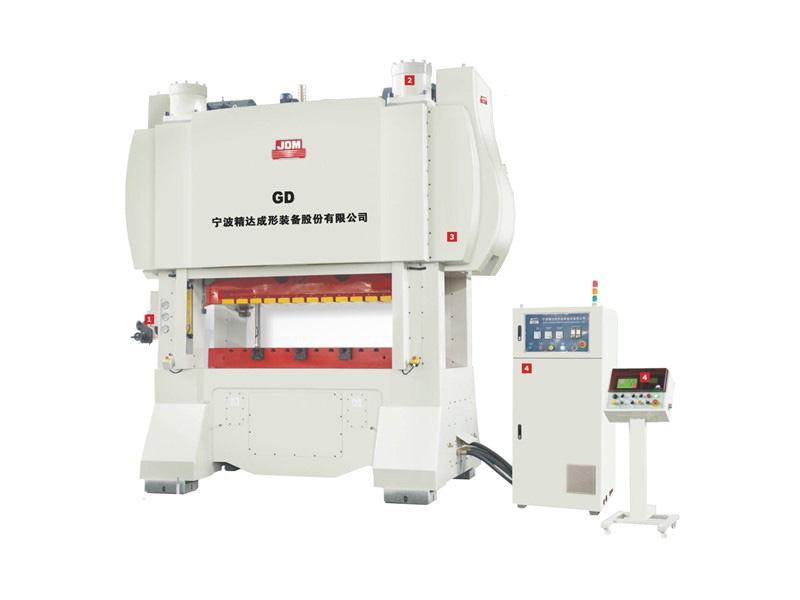

GD200W Motor High Speed Stamping Press

GD Series Motor Core High Speed Press

Description

Specifications

Automatic high-speed precision stamping, including new energy automobile motor, compressor motor, high-efficiency industrial motor, etc.

Product Features

1.Lifting the slide cylinder can move the slider to the ascension of the whole, convenient mould test.

2.The drive system uses double power, energy saving, high efficiency.

3.Crank slider structure, increase rigidity, reduce eccentric load

4.Oil circulation lubrication system

5. Flexible control system

Specification	Unit	GD63A	GD125A	GD200LA
Force structure		Square slider bearing
Capacity	kN	Double point	Double point	Dual drive dual point
Force points		630	1250	2000
Rated tonnage point	mm	2	2	2
Slide stroke	mm	3	3	3
Pressing times	spm	30	30	30
Die height	mm	150～400	150～400	160～350
Minimum die height when lifting capacity	mm	320～380	350～410	380～480
Slide size	mm	80	100	150
Bolster area(L.R. x F.B.)	mm	950×530	1260×600	1750×760
The base of blanking holes area	kW	950×595	1300×650	1750×1000
The main motor power	kW	700×180	1000×250	1450×260
The total power	kW	11	15	2×15
Positive opening width	mm	16	22	37
Accuracy（JIS B6402)		750	1200	1750

Specification	Unit	GD200W	GD300LA	GD300W
Force structure		Square slider bearing
Capacity	kN	Single drive dual point	Dual drive dual point	Single drive dual point
Force points		2000	3000	2000
Rated tonnage point	mm	2	2	2
Slide stroke	mm	1.6	3	1.6
Pressing times	spm	30	30	30
Die height	mm	150～350	160～350	160～350
Minimum die height when lifting capacity	mm	380～480	420～520	420～520
Slide size	mm	150	150	150
Bolster area(L.R. x F.B.)	mm	1900×760	2100×800	2200×800
The base of blanking holes area	kW	1900×1000	2100×1000	2200×1000
The main motor power	kW	1600×300	1700×410	1900×400
The total power	kW	2×15	2×15	2×15
Positive opening width	mm	40	37	55
Accuracy（JIS B6402)		1750	2020	1750

Specification	Unit	GD400-280	GD630-309
Force structure		Crank shaft
Capacity	kN	Double drive three points	Double drive four points
Force points		4000	6300
Rated tonnage point	mm	3	4
Slide stroke	mm	1.6	1.6
Pressing times	spm	40	40
Die height	mm	100～250	80～200
Minimum die height when lifting capacity	mm	450～550	450～550
Slide size	mm	150	150
Bolster area(L.R. x F.B.)	mm	2800×1000	3100×1200
The base of blanking holes area	kW	2800×1200	3100×1300
The main motor power	kW	2400×510	2700×580
The total power	kW	2×30	2×37
Positive opening width	mm	75	90
Accuracy（JIS B6402)		2900	3200
