GD63A Motor High Speed Stamping Press

GD Series Motor Core High Speed Press
GD63A Motor High Speed Stamping Press
GD63A Motor High Speed Stamping Press

Description

Reviews

Specifications
Automatic high-speed precision stamping, including new energy automobile motor, compressor motor, high-efficiency industrial motor, etc.

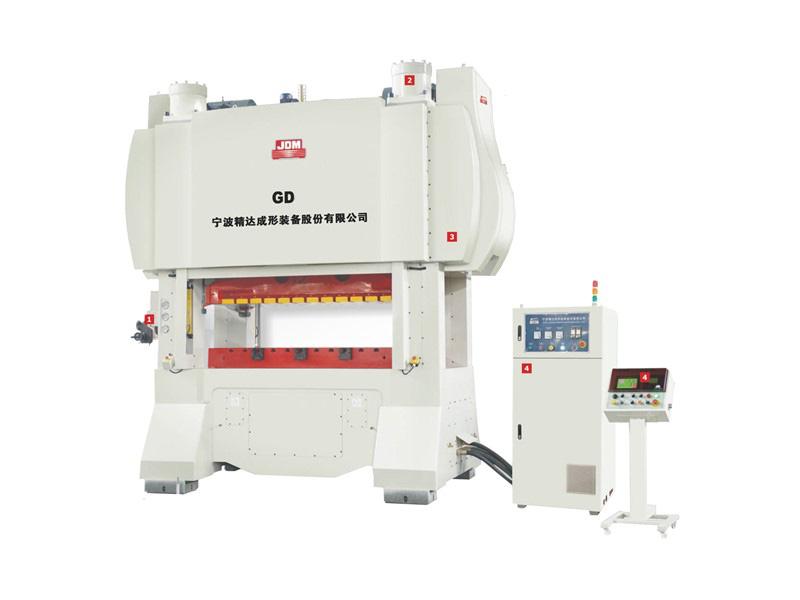

Product Features
1.Lifting the slide cylinder can move the slider to the ascension of the whole, convenient mould test.
2.The drive system uses double power, energy saving, high efficiency.
3.Crank slider structure, increase rigidity, reduce eccentric load
4.Oil circulation lubrication system
5. Flexible control system
Specification Unit GD63A GD125A GD200LA
Force structure   Square slider bearing
Capacity kN Double point Double point Dual drive dual point
Force points    630 1250 2000
Rated tonnage point mm 2 2 2
Slide stroke mm 3 3 3
Pressing times spm 30 30 30
Die height mm 150~400 150~400 160~350
Minimum die height
when lifting capacity
mm 320~380 350~410 380~480
Slide size mm 80 100 150
Bolster area(L.R. x F.B.) mm 950×530 1260×600 1750×760
The base of blanking
holes area
kW 950×595 1300×650 1750×1000
The main motor power kW 700×180 1000×250 1450×260
The total power kW 11 15 2×15
Positive opening width mm 16 22 37
Accuracy(JIS B6402)   750 1200 1750
Specification Unit GD200W GD300LA GD300W
Force structure   Square slider bearing
Capacity kN Single drive dual point Dual drive dual point Single drive dual point
Force points    2000 3000 2000
Rated tonnage point mm 2 2 2
Slide stroke mm 1.6 3 1.6
Pressing times spm 30 30 30
Die height mm 150~350 160~350 160~350
Minimum die height
when lifting capacity
mm 380~480 420~520 420~520
Slide size mm 150 150 150
Bolster area(L.R. x F.B.) mm 1900×760 2100×800 2200×800
The base of blanking
holes area
kW 1900×1000 2100×1000 2200×1000
The main motor power kW 1600×300 1700×410 1900×400
The total power kW 2×15 2×15 2×15
Positive opening width mm 40 37 55
Accuracy(JIS B6402)   1750 2020 1750
Specification Unit GD400-280 GD630-309
Force structure   Crank shaft
Capacity kN Double drive three points Double drive four points
Force points    4000 6300
Rated tonnage point mm 3 4
Slide stroke mm 1.6 1.6
Pressing times spm 40 40
Die height mm 100~250 80~200
Minimum die height when
lifting capacity
mm 450~550 450~550
Slide size mm 150 150
Bolster area(L.R. x F.B.) mm 2800×1000 3100×1200
The base of blanking
holes area
kW 2800×1200 3100×1300
The main motor power kW 2400×510 2700×580
The total power kW 2×30 2×37
Positive opening width mm 75 90
Accuracy(JIS B6402)   2900 3200
